21.4
13.8
21.8
12.6

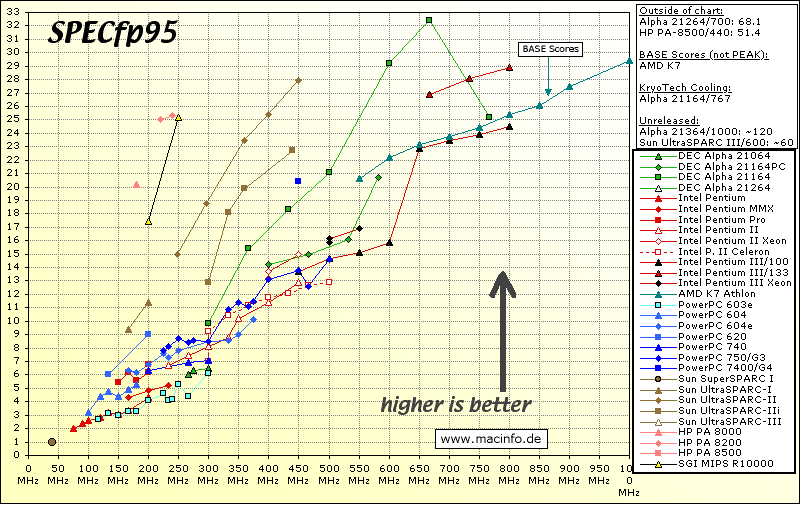

High Bus Speed = High SPECfp95
SPECint95: Geometrisches Mittel der Ergebnisse von acht unterschiedlichen Tests (in ANSI C).
SPECfp95: Geometrisches Mittel der Ergebnisse von zehn unterschiedliche Fliesskomma-Tests (in FORTRAN).
|
Auf dieser Seite finden sich SPEC95 Peak-Werte (erzielt durch Compiler-Optimierungen), die teilweise deutlich über den Base-Werten liegen. Die meisten Prozessorhersteller geben - aus Marketinggründen - nur die Peak-Werte an.
|
On this page you find mostly SPEC95 peak scores (run with compiler optimization), these score may be significantly higher than the base scores. Most chip makers only publish peak scores.
|
|
SPECmark95 ist nicht mehr angemessen, heutige Prozessorarchitekturen zu vergleichen: kein MMX, kein SIMD, kein AltiVec, kein Backside-Cache wird berücksichtigt. Zudem ist der SPECfp95 sehr stark abhängig von der Busgeschwindigkeit: siehe unseren Artikel Zahlen, Fakten und Statistik (Kapitel "Auswahl des Benchmarks"). |
SPECmark95 is not a good benchmark to compare todays hardware architectures: no MMX, no SIMD, no AltiVec, no new architecture since 1995 (e. g. backside cache, cache size in general) is specifically tested. Besides that the SPECfp95 strongly depends on the bus speed, see or article Facts, numbers and statistics (chapter "Selection of benchmarks"). |
| SPECfp95 & Bus Speed example: | |||||||||||||||||||||||||||
| CPU | CPU MHz | Bus MHz | SPECint95 | % | SPECfp95 | % | |||||||||||||||||||||
| PowerPC 750 | 450 (100.0%) | 100 (100.0%) | 21.4
| 100.0% | 13.8
| 100.0%
| PowerPC 750
| 466 (103.6%)
| 83 (83.0%)
| 21.8
101.9%
| 12.6
91.3%
| Note:
| G3/466: +3.6% CPU Speed, -17% Bus Speed = -9% SPECfp95 (!)
| High Bus Speed = High SPECfp95 Für jeden Benchmark gilt: Höhere Werte sind besser. Higher Scores are better.
| | |||||||||||||
| Typ/MHz/Busspeed | SPECint92 | SPECfp92 | SPECint95 | SPECfp95 | Anmerkung |
| DEC Alpha 21164PC/400 | ? | ? | 10.4 | 14.2 | |
| DEC Alpha 21164PC/466 | ? | ? | 11.0 | 15.0 | |
| DEC Alpha 21164PC/533 | ? | ? | 12.6 | 16.1 | |
| DEC Alpha 21164PC/583 | ? | ? | 16.7 | 20.7 | |
| DEC Alpha 21164/366 | ? | ? | 11.3 | 15.4 | |
| DEC Alpha 21164/433 | ? | ? | 13.3 | 18.3 | |
| DEC Alpha 21164/500 | ? | ? | 15.4 | 21.1 | 16k L1, 96k L2, 8MB L3 |
| DEC Alpha 21164/600 | ? | ? | 18.8 | 29.2 | 16k L1, 96k L2, 8MB L3 |
| DEC Alpha 21164/667 | ? | ? | 20.8 | 32.4 | |
| DEC Alpha 21164/767 KryoTech | ? | ? | 23.3 | 25.2 | KryoTech Cooling |
| DEC Alpha 21264/466 | ? | ? | 24.6 | 47.9 | 128k L1, 2MB L2 |
| DEC Alpha 21264/500 | ? | ? | 27.3 | 57.7 | 128k L1, 4MB L2 |
| DEC Alpha 21264/525 | ? | ? | 27.8 | 45.2 | 128k L1, 4MB L2 |
| DEC Alpha 21264/575 | ? | ? | 30.3 | 47.7 | 128k L1, 4MB L2 |
| DEC Alpha 21264/667 | ? | ? | 32.1 | 53.7 | 128k L1, 4MB L2 (UP2000) |
| DEC Alpha 21264A/667 | ? | ? | 37.5 | 65.5 | 128k L1, 4MB L2 |
| DEC Alpha 21264A/700 | ? | ? | 39.1 | 68.1 | 128k L1, 8MB L2 |
| DEC Alpha 21364/1000 | ? | ? | 70.0 | 120.0 | Prototyp |
| AMD K7/550 | ? | ? | 25.1 | 20.6 | 512k 2:1 L2 |
| AMD K7/600 | ? | ? | 27.5 | 22.2 | 512k 2:1 L2 |
| AMD K7/650 | ? | ? | 29.7 | 23.2 | 512k 2:1 L2 |
| AMD K7/700 | ? | ? | 31.8 | 23.8 | 512k 2:1 L2 |
| AMD K7/750 | ? | ? | 33.0 | 24.4 | 512k 5:2 L2 |
| AMD K7/800 | ? | ? | 35.0 | 25.4 | 512k 5:2 L2 |
| AMD K7/850 | ? | ? | ? | 26.1 | 512k 5:2 L2 |
| AMD K7/900 | ? | ? | ? | 27.5 | 512k 3:1 L2 |
| AMD K7/950 | ? | ? | ? | ? | 512k 3:1 L2 |
| AMD K7/1000 | ? | ? | ? | 29.4 | 512k 3:1 L2 |
| Intel 386DX/33 | 9.40 | --- | ? | ? | |
| Intel 386SX/25 | 4.55 | --- | ? | ? | |
| Intel 386SX/33 | 6.20 | 3.30 | ? | ? | |
| Intel 486DX/25 | 16.80 | 7.40 | ? | ? | |
| Intel 486DX/33 | 22.39 | 9.88 | ? | ? | |
| Intel 486DX/50 | 33.40 | 14.50 | ? | ? | |
| Intel 486SX/25 | 12.00 | --- | ? | ? | |
| Intel 486SX/33 | 15.86 | --- | ? | ? | |
| Intel DX2/50 | 29.91 | 14.22 | ? | ? | |
| Intel DX2/66 | 39.59 | 18.80 | ? | ? | |
| Intel DX4/75 | 41.40 | 20.10 | ? | ? | |
| Intel DX4/100 | 54.59 | 26.91 | ? | ? | |
| Intel Pentium 66 | 78.00 | 63.60 | ? | ? | |
| Intel Pentium 75 | 89.10 | 68.50 | 2.3 | 2.0 | |
| Intel Pentium 90 | 110.00 | 84.40 | 2.7 | 2.4 | |
| Intel Pentium 100 | 122.00 | 93.20 | 3.3 | 2.6 | |
| Intel Pentium 120 | 157.00 | 108.00 | 3.7 | 2.8 | |
| Intel Pentium 133/66 | 174.00 | 121.00 | 4.1 | 3.1 | |
| Intel Pentium 150/50 | 181.00 | 125.00 | 4.3 | 3.0 | |
| Intel Pentium 166 | 198.00 | 138.00 | 4.8 | 3.4 | |
| Intel Pentium 166 MMX | ? | ? | 5.6 | 4.3 | |
| Intel Pentium 200 | ? | ? | 5.2 | 4.3 | |
| Intel Pentium 200 MMX | ? | ? | 6.4 | 4.9 | |
| Intel Pentium 233 MMX | ? | ? | 7.1 | 5.2 | |
| Intel Pentium Pro 150 | 245.00 | 220.00 | 6.1 | 5.4 | 256k 150MHz L2 Cache (1:1) |
| Intel Pentium Pro 166/66/256k | 293.00 | 261.00 | 7.1 | 6.2 | 256k 166MHz L2 Cache (1:1) |
| Intel Pentium Pro 166/66/512k | ? | ? | 7.2 | 5.8 | 512k 166MHz L2 Cache (1:1) |
| Intel Pentium Pro 180/60/256k | ? | ? | 7.3 | 5.6 | 256k 180MHz L2 Cache (1:1) |
| Intel Pentium Pro 200/66/256k | 320.00 | 283.00 | 8.2 | 6.2 | 256k 200MHz L2 Cache (1:1) |
| Intel Pentium Pro 200/66/512k | ? | ? | 8.6 | 6.5 | 512k 200MHz L2 Cache (1:1) |
| Intel Pentium Pro 200/66/1024k | ? | ? | 8.7 | 6.8 | 1024k 200MHz L2 Cache (1:1) |
| Intel Pentium II Celeron 300/66/0k | ? | ? | 8.8 | 7.0 | NO L2 Cache |
| Intel Pentium II Celeron 300A/66/128k | ? | ? | 11.9 | 9.2 | 128k 300MHz L2 Cache (1:1) |
| Intel Pentium II Celeron 333/66/128k | ? | ? | 12.9 | 10.4 | 128k 333MHz L2 Cache (1:1) |
| Intel Pentium II Celeron 366/66/128k | ? | ? | 13.9 | 11.2 | 128k 366MHz L2 Cache (1:1) |
| Intel Pentium II Celeron 400/66/128k | ? | ? | 14.9 | 11.8 | 128k 400MHz L2 Cache (1:1) |
| Intel Pentium II Celeron 433/66/128k | ? | ? | 15.8 | 12.1 | 128k 433MHz L2 Cache (1:1) |
| Intel Pentium II Celeron 466/66/128k | ? | ? | 17.1 | 12.7 | 128k 466MHz L2 Cache (1:1) |
| Intel Pentium II Celeron 500/66/128k | ? | ? | 17.9 | 12.9 | 128k 500MHz L2 Cache (1:1) |
| Intel Pentium II 233/66 | Press Release Scores: | 9.5 | 6.4 | 512k 117MHz L2 Cache (2:1) | |
| Intel Pentium II 233/66 | P-II Performance Page: | 9.5 | 6.7 | 512k 117MHz L2 Cache (2:1) | |
| Intel Pentium II 266/66 | Press Release Scores: | 10.8 | 6.9 | 512k 133MHz L2 Cache (2:1) | |
| Intel Pentium II 266/66 | P-II Performance Page: | 10.8 | 7.5 | 512k 133MHz L2 Cache (2:1) | |
| Intel Pentium II 300/66 | Press Release Scores: | 11.6 | 7.2 | 512k 150MHz L2 Cache (2:1) | |
| Intel Pentium II 300/66 | P-II Performance Page: | 11.7 | 8.1 | 512k 150MHz L2 Cache (2:1) | |
| Intel Pentium II 333/66 | ? | ? | 12.8 | 8.8 | 512k 167MHz L2 Cache (2:1) |
| Intel Pentium II 350/100 | ? | ? | 13.9 | 10.2 | 512k 175MHz L2 Cache (2:1) |
| Intel Pentium II 400/100 | ? | ? | 15.8 | 11.4 | 512k 200MHz L2 Cache (2:1) |
| Intel Pentium II 450/100 | ? | ? | 17.2 | 12.9 | 512k 225MHz L2 Cache (2:1) |
| Intel Pentium II XEON 400/100/512k | ? | ? | 16.3 | 13.2 | 512k 400MHz L2 Cache (1:1) |
| Intel Pentium II XEON 400/100/1MB | ? | ? | 16.5 | 13.7 | 1024k 400MHz L2 Cache (1:1) |
| Intel Pentium II XEON 450/100/512k | ? | ? | 19.7 | 15.0 | 1024k 450MHz L2 Cache (1:1) |
| Intel Pentium III 450/100 | ? | ? | 18.7 | 13.7 | 512k 225MHz L2 Cache (2:1) |
| Intel Pentium III 500/100 | ? | ? | 20.6 | 14.7 | 512k 250MHz L2 Cache (2:1) |
| Intel Pentium III 550/100 | ? | ? | 22.3 | 15.1 | 512k 275MHz L2 Cache (2:1) |
| Intel Pentium III 600/100 | ? | ? | 24.0 | 15.9 | 512k 300MHz L2 Cache (2:1) |
| Intel Pentium III/E 650/100 | ? | ? | 31.6 | 22.9 | 256k 650MHz L2 Cache (1:1) |
| Intel Pentium III/E 667/133 | ? | ? | 33.0 | 26.9 | 256k 667MHz L2 Cache (1:1) |
| Intel Pentium III/E 700/100 | ? | ? | 33.8 | 23.5 | 256k 700MHz L2 Cache (1:1) |
| Intel Pentium III/E 733/133 | ? | ? | 35.6 | 28.1 | 256k 733MHz L2 Cache (1:1) |
| Intel Pentium III/E 750/100 | ? | ? | 35.7 | 23.9 | 256k 750MHz L2 Cache (1:1) |
| Intel Pentium III/E 800/100 | ? | ? | 38.3 | 24.5 | 256k 800MHz L2 Cache (1:1) |
| Intel Pentium III/E 800/133 | ? | ? | 38.4 | 28.9 | 256k 800MHz L2 Cache (1:1) |
| Intel Pentium III XEON 500/100/512k | ? | ? | 21.7 | 15.9 | 512k 500MHz L2 Cache (1:1) |
| Intel Pentium III XEON 500/100/1MB | ? | ? | 22.1 | 16.2 | 1024k 500MHz L2 Cache (1:1) |
| Intel Pentium III XEON 550/100/512k | ? | ? | 23.6 | 16.9 | 512k 550MHz L2 Cache (1:1) |
| Motorola 68040/25 | 21.00 | 15.00 | ? | ? | |
| Motorola 68040/33 | 35.00 | --- | ? | ? | |
| PowerPC 601/66 | 62.00 | 54.00 | ? | ? | |
| PowerPC 601/80 | 75.00 | 65.00 | ? | ? | |
| PowerPC 601/100 | 120.00 | 105.00 | ? | ? | |
| PowerPC 603/66 | 62.00 | 54.00 | ? | ? | |
| PowerPC 603/80 | 75.00 | 65.00 | ? | ? | |
| PowerPC 603/100 | 120.00 | 105.00 | ? | ? | |
| PowerPC 603e/100 | 120.00 | 105.00 | ? | ? | |
| PowerPC 603e/117 | ? | ? | 3.5 | 2.7 | |
| PowerPC 603e/133 | ? | ? | 3.9 | 3.1 | |
| PowerPC 603e/150/60 | ? | ? | 4.1 | 3.0 | |
| PowerPC 603e/160/64 | ? | ? | 4.3 | 3.2 | |
| PowerPC 603e/166/55 | ? | ? | 4.5 | 3.3 | |
| PowerPC 603e/180/60 | ? | ? | 4.6 | 3.3 | |
| PowerPC 603e/200/66 | ? | ? | 6.4 | 4.1 | |
| PowerPC 603e/220/74 | ? | ? | 7.1 | 4.5 | |
| PowerPC 603e/225/75 | ? | ? | 7.1 | 4.6 | |
| PowerPC 603e/233/66 | ? | ? | 6.9 | 4.1 | |
| PowerPC 603e/240/68 | ? | ? | 7.4 | 4.2 | |
| PowerPC 603e/250/?? | ? | ? | 6.4 | 5.3 | |
| PowerPC 603e/266/66 | ? | ? | ? | 4.4 | |
| PowerPC 603e/300 | ? | ? | 7.4 | 6.1 | |
| PowerPC 604/100 | 160.00 | 165.00 | 3.6 | 3.2 | |
| PowerPC 604/120/60 | 180.00 | 180.00 | 4.7 | 4.4 | |
| PowerPC 604/133/66.5 | 200.00 | 200.00 | 5.2 | 4.8 | |
| PowerPC 604/150/50 | ? | ? | 5.3 | 4.4 | |
| PowerPC 604/166/55 | ? | ? | 5.7 | 4.9 | |
| PowerPC 604/180/60 | ? | ? | 6.2 | 5.3 | |
| PowerPC 604e/166/66 | ? | ? | 7.7 | 6.3 | 1024k 66MHz L2 Cache |
| PowerPC 604e/180/60 | ? | ? | 8.2 | 6.2 | 1024k 60MHz L2 Cache |
| PowerPC 604e/200/66 | ? | ? | 9.1 | 6.8 | 1024k 66MHz L2 Cache |
| PowerPC 604e/225/64 | ? | ? | 10.2 | 7.6 | 1024k 64MHz L2 Cache |
| PowerPC 604e/233/66 | ? | ? | 10.3 | 7.3 | 1024k 66MHz L2 Cache |
| PowerPC 604r/250/71 | ? | ? | 11.1 | 7.8 | 1024k 142MHz L2 Cache (2xBus) |
| PowerPC 604r/300/75 | ? | ? | 12.9 | 8.5 | 1024k 150MHz L2 Cache (2xBus) |
| PowerPC 604r/333/74 | ? | ? | 13.9 | 8.6 | 1024k 148MHz L2 Cache (2xBus) |
| PowerPC 604r/350/77 | ? | ? | 14.6 | 9.0 | 1024k 154MHz L2 Cache (2xBus) |
| PowerPC 604r/375/83 | ? | ? | 15.9 | 10.1 | 1024k 187MHz L2 Cache (2xBus) |
| PowerPC 620/133 | 225.00 | 300.00 | 6.0 | 6.0 | |
| PowerPC 620/200 | ? | ? | 8.0 | 10.0 | 4096k L2-Cache |
| PowerPC 740/200 | ? | ? | 8.9 | 6.3 | |
| PowerPC 740/266 | ? | ? | 11.5 | 6.9 | |
| PowerPC 740/300 | ? | ? | 12.2 | 7.1 | |
| PowerPC 750/225/64 | ? | ? | 10.6 | 7.8 | 1024k 150MHz L2 Cache (3:2) |
| PowerPC 750/233/117/66 | ? | ? | 11.0 | 8.1 | 1024k 117MHz L2 Cache (2:1) |
| PowerPC 750/250/125/71 | ? | ? | 11.8 | 8.7 | 1024k 125MHz L2 Cache (2:1) |
| PowerPC 750/266/133/66 | ? | ? | 12.4 | 8.4 | 1024k 133MHz L2 Cache (2:1) |
| PowerPC 750/275/138/69 | ? | ? | 12.9 | 8.6 | 1024k 138MHz L2 Cache (2:1) |
| PowerPC 750/300/150/66 | ? | ? | 13.2 | 8.5 | 1024k 150MHz L2 Cache (2:1) |
| PowerPC 750/333/166/66 | ? | ? | 14.5 | 9.0 | 1024k 166MHz L2 Cache (2:1) |
| PowerPC 750/333/166/83 | ? | ? | 16.0 | 10.9 | 1024k 166MHz L2 Cache (2:1) |
| PowerPC 750/350/175/87 | ? | ? | 16.7 | 11.4 | 1024k 175MHz L2 Cache (2:1) |
| PowerPC 750/366/183/81 | ? | ? | 17.2 | 11.1 | 1024k 183MHz L2 Cache (2:1) |
| PowerPC 750/375/188/83 | ? | ? | 17.8 | 11.5 | 1024k 188MHz L2 Cache (2:1) |
| PowerPC 750/400/200/89 | ? | ? | 19.2 | 13.1 | 1024k 200MHz L2 Cache (2:1) |
| PowerPC 750/450/225/100 | ? | ? | 21.4 | 13.8 | 1024k 225MHz L2 Cache (2:1) |
| PowerPC 750/466/233/83 | ? | ? | 21.8 | 12.6 | 1024k 233MHz L2 Cache (2:1) |
| PowerPC 750/500/250/100 | ? | ? | 23.9 | 14.6 | 1024k 250MHz L2 Cache (2:1) |
| PowerPC 7400/450/???/??? | ? | ? | 21.4 | 20.4 | Cache Configuration ? |
| Power2/160 | ? | ? | 8.6 | 26.6 | IBM |
| Power3/200 | ? | ? | 13.1 | 30.1 | 96k L1, 4096k L2 off-chip |
| Power3/222 | ? | ? | 13.9 | 28.6 | 96k L1, 4096k L2 off-chip |
| Power3-ii/375 | ? | ? | 24.4 | 50.9 | 96k L1, 8192k L2 off-chip |
| Sun SuperSparc I/40 | ? | ? | 1.0 | 1.0 | REFERENZ; 0k L2-Cache |
| Sun UltraSPARC-I/167 | ? | ? | 6.6 | 9.4 | |
| Sun UltraSPARC-I/200 | ? | ? | 7.8 | 11.4 | 1024k E-Cache |
| Sun UltraSPARC-II/248 | ? | ? | 10.4 | 15.0 | 1024k E-Cache |
| Sun UltraSPARC-II/296 | ? | ? | 12.1 | 18.8 | 2048k E-Cache |
| Sun UltraSPARC-II/360/90 | ? | ? | 16.1 | 23.5 | 4048k E-Cache |
| Sun UltraSPARC-II/400/100 | ? | ? | 17.7 | 25.4 | 4048k E-Cache |
| Sun UltraSPARC-II/450/112.5 | ? | ? | 19.7 | 27.9 | 32k L1, 4048k L2 off-chip |
| Sun UltraSPARC-IIi/300 | ? | ? | 12.1 | 12.9 | 512k E-Cache |
| Sun UltraSPARC-IIi/333 | ? | ? | 14.1 | 18.1 | 2048k E-Cache 167MHz (2:1) |
| Sun UltraSPARC-IIi/360/90 | ? | ? | 15.2 | 19.9 | |
| Sun UltraSPARC-IIi/440/110 | ? | ? | 18.1 | 22.7 | 2048k E-Cache |
| Sun UltraSPARC-III/600 | ? | ? | 35.0 | 60.0 | 8096k E-Cache |
| HP PA-RISC 8000/180 | ? | ? | 11.8 | 20.2 | |
| HP PA-RISC 8200/220 | ? | ? | 15.5 | 25.0 | |
| HP PA-RISC 8200/240 | ? | ? | 16.4 | 25.3 | 4096k L2-Cache |
| HP PA-RISC 8500/300 | ? | ? | 22.4 | 38.8 | 1500k L1-Cache (0k L2) |
| HP PA-RISC 8500/360 | ? | ? | 28.2 | 46.3 | 1500k L1-Cache (0k L2) |
| HP PA-RISC 8500/400 | ? | ? | 30.2 | 48.6 | 1500k L1-Cache (0k L2) |
| HP PA-RISC 8500/440 | ? | ? | 34.0 | 51.4 | 1500k L1-Cache (0k L2) |
| SGI MIPS R10000/200 | ? | ? | 10.7 | 17.4 | |
| SGI MIPS R10000/250 | ? | ? | 15.3 | 25.2 | 4096k L2-Cache |
|
|
