Es werden die folgenden Aktionen auf ein kleines Bild angewandt:
- Unscharf maskieren
- Drehen +3 Grad
- Drehen -3 Grad
- Radialer Weichzeichner
- RGB -> CYMK
- Gauss'scher Weichzeichner
- CYMK -> RGB
| The following actions are run on a small picture:
- Unsharp mask
- Rotate +3 degrees
- Rotate -3 degrees
- Radial blur
- RGB -> CYMK
- Gaussian blur
- CYMK-> RGB
|
Testbedingungen:
- Bildschirmauflösung 1024x768 bei 16 Bit
- Minimales System booten
- PhotoShop: 20MB RAM zuweisen
- PhotoShop: 4 Cache-Stufen einstellen
- PhotoShop: Nur primäres Arbeitsvolumen
- PhotoShop: Diese Einstellungen erfordern einen Neustart von PhotoShop!
| The following actions are run on a small picture:
- Screen resolution 1024x768 at 16 Bit
- Boot minimal system
- PhotoShop: 20MB RAM
- PhotoShop: 4 cache levels
- PhotoShop: use primary volume only
- PhotoShop: Note that you have to relaunch PhotoShop if you change one or more of these settings!
|
| Höhere Werte sind besser.
| Higher Scores are better.
|
| [Download coming]
|

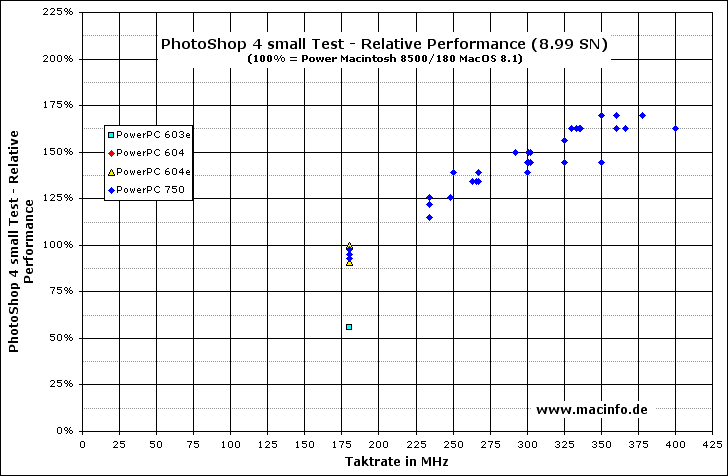

Referenz = 100: PowerMac 8500, PowerPC 604e/180, 45 MHz Bus, 1MB L2-Cache, MacOS 8.1
| |
| Rechner
| CPU
| MHz
| Bus
| x
| L2 / MHz
| Relative Performance
| Runtime
| PShop
| OS
| Comment
|
| 5400/180
| 603e
| 180
| 40.0
| 4.5
| 256k
| 40.0
|
| 55.7%
| 70sec
| 4.0
| 8.1
| 832x624 Pixel max.
|
| 8500/180/1MB 8.1
| 604e
| 180
| 45.0
| 4.0
| 1024k
| 45.0
|
| 100.0%
| 39sec
| 4.0
| 8.1
| 1MB L2-Cache
|
| 8500/180/1MB 8.5.1
| 604e
| 180
| 45.0
| 4.0
| 1024k
| 45.0
|
| 90.7%
| 43sec
| 4.0
| 8.5.1
| 1MB L2-Cache
|
| PowerMac G3/233 no Cache
| 750
| 234
| 66.9
| 3.5
| 0k
| ---
|
| 114.7%
| 34sec
| 4.0
| 8.1
| Cache disabled
|
| PowerMac G3/233
| 750
| 234
| 66.9
| 3.5
| 512k
| 117.0
|
| 121.9%
| 32sec
| 4.0
| 8.1
| Standardsystem
|
| PowerMac G3/233 3:2
| 750
| 234
| 66.9
| 3.5
| 512k
| 156.0
|
| 125.8%
| 31sec
| 4.0
| 8.1
| Cache 3:2
|
| PowerMac G3/233@263
| 750
| 263
| 75.2
| 3.5
| 512k
| 131.6
|
| 134.5%
| 29sec
| 4.0
| 8.1
| 263MHz, 75 Bus
|
| PowerMac G3/266 3:1
| 750
| 267
| 66.8
| 4.0
| 512k
| 89.1
|
| 134.5%
| 29sec
| 4.0
| 8.1
| Cache 3:1
|
| PowerMac G3/266
| 750
| 267
| 66.8
| 4.0
| 512k
| 133.6
|
| 139.3%
| 28sec
| 4.0
| 8.1
| Standardsystem
|
| PowerMac G3/233@292
| 750
| 292
| 83.4
| 3.5
| 512k
| 145.9
|
| 150.0%
| 26sec
| 4.0
| 8.1
| 292MHz, 83 Bus
|
| PowerMac G3/350
| 750
| 350
| 99.7
| 3.5
| 1024k
| 174.9
|
| 169.6%
| 23sec
| 4.0
| 8.5.1
| Standardsystem
|
| PowerMac G3/350 3:2
| 750
| 350
| 99.7
| 3.5
| 1024k
| 232.7
| Memory Fault (Radialer Weichzeichner)
| 4.0
| 8.5.1
| Cache 3:2
|
| PowerMac G3/350 @ 360/180/90
| 750
| 360
| 90.0
| 4.0
| 1024k
| 180.0
|
| 162.5%
| 24sec
| 4.0
| 8.5.1
| Overclocked
|
| PowerMac G3/350 @ 360/180/120
| 750
| 360
| 120.0
| 3.0
| 1024k
| 180.0
|
| 169.6%
| 23sec
| 4.0
| 8.5.1
| Overclocked
|
| PowerMac G3/350 @ 366/183/67
| 750
| 366
| 66.7
| 5.5
| 1024k
| 183.0
|
| 162.5%
| 24sec
| 4.0
| 8.5.1
| Overclocked
|
| PowerMac G3/350 @ 378/189/95
| 750
| 378
| 94.5
| 4.0
| 1024k
| 189.0
|
| 169.6%
| 23sec
| 4.0
| 8.5.1
| Overclocked
|
| PowerBook G3/250 WallStreet
| 750
| 250
| 83.3
| 3.0
| 1024k
| 125.0
|
| 139.3%
| 28sec
| 4.0
| 8.1
| Standardsystem
|
| joeCARD 400
| 750
| 400
| 50.0
| 8.0
| 1024k
| 200.0
|
| 162.5%
| 24sec
| 4.0
| 8.5.1
| 8500/G3
|
| joeCARD 400 @350MHz
| 750
| 350
| 50.0
| 7.0
| 1024k
| 175.0
|
| 144.4%
| 27sec
| 4.0
| 8.5.1
| 8500/G3 downclocked
|
| Maccelerate!750 300/150/46
| 750
| 300
| 46.2
| 6.5
| 1024k
| 150.2
|
| 144.4%
| 27sec
| 4.0
| 8.1
| 8500/G3
|
| Maccelerate!750 300/150/46 +L3
| 750
| 300
| 46.2
| 6.5
| 1024k
| 150.2
|
| 139.3%
| 28sec
| 4.0
| 8.1
| 8500/G3 +1MB L3-Cache
|
| Maccelerate!750 300/150/50
| 750
| 300
| 50.0
| 6.0
| 1024k
| 150.0
|
| 144.4%
| 27sec
| 4.0
| 8.1
| 8500/G3
|
| Maccelerate!750 300/200/50 3:2
| 750
| 300
| 50.0
| 6.0
| 1024k
| 200.0
|
| 144.4%
| 27sec
| 4.0
| 8.1
| 8500/G3 3:2 Cache
|
| Maccelerate!750 303/151/55
| 750
| 303
| 55.0
| 5.5
| 1024k
| 151.3
|
| 144.4%
| 27sec
| 4.0
| 8.1
| 8500/G3 55 Bus
|
| Maccelerate!750 303/202/55 3:2
| 750
| 303
| 55.0
| 5.5
| 1024k
| 201.7
|
| 150.0%
| 26sec
| 4.0
| 8.1
| 8500/G3 55 Bus 3:2 Cache
|
| Maccelerate!750 325/163/50
| 750
| 325
| 50.0
| 6.5
| 1024k
| 162.5
|
| 156.0%
| 25sec
| 4.0
| 8.1
| 8500/G3 325MHz
|
| Maccelerate!750 325/163/50 +L3
| 750
| 325
| 50.0
| 6.5
| 1024k
| 162.5
|
| 144.4%
| 27sec
| 4.0
| 8.1
| 8500/G3 325MHz +1MB L3-Cache
|
| Maccelerate!750 325/217/50 3:2
| 750
| 325
| 50.0
| 6.5
| 1024k
| 216.7
|
| 156.0%
| 25sec
| 4.0
| 8.1
| 8500/G3 325MHz 3:2 Cache
|
| Maccelerate!750 330/165/55
| 750
| 330
| 55.0
| 6.0
| 1024k
| 165.0
|
| 162.5%
| 24sec
| 4.0
| 8.1
| 8500/G3 330MHz
|
| Maccelerate!750 330/220/55 3:2
| 750
| 330
| 55.0
| 6.0
| 1024k
| 220.0
|
| 162.5%
| 24sec
| 4.0
| 8.1
| 8500/G3 330MHz 3:2 Cache
|
| PowerForce G3/180/180/256k
| 750
| 180
| 45.0
| 4.0
| 256k
| 180.0
|
| 92.9%
| 42sec
| 4.0
| 8.1
| 8500/G3 256k Cache
|
| PowerForce G3/180/180/512k
| 750
| 180
| 45.0
| 4.0
| 512k
| 180.0
|
| 97.5%
| 40sec
| 4.0
| 8.1
| 8500/G3 512k Cache
|
| PowerForce G3/180/90 2:1
| 750
| 180
| 45.0
| 4.0
| 1024k
| 90.0
|
| 95.1%
| 41sec
| 4.0
| 8.1
| 8500/G3 2:1 Cache
|
| PowerForce G3/180/180
| 750
| 180
| 45.0
| 4.0
| 1024k
| 180.0
|
| 97.5%
| 40sec
| 4.0
| 8.1
| 8500/G3
|
| PowerForce G3/266/266
| 750
| 266
| 44.3
| 6.0
| 1024k
| 266.0
|
| 134.5%
| 29sec
| 4.0
| 8.1
| 8500/G3
|
| PowerForce G3/300/300
| 750
| 300
| 40.0
| 7.5
| 1024k
| 300.0
|
| 139.3%
| 28sec
| 4.0
| 8.1
| 8500/G3
|
| PowerForce G3/333/222
| 750
| 333
| 44.3
| 7.5
| 1024k
| 221.8
|
| 162.5%
| 24sec
| 4.0
| 8.1
| 8500/G3
|
| Storm Runner G3 300/150/50
| 750
| 301
| 50.1
| 6.0
| 512k
| 150.4
|
| 144.4%
| 27sec
| 4.0
| 8.1
| 8500/G3
|
| Storm Runner G3 300/201/50 3:2
| 750
| 301
| 50.1
| 6.0
| 512k
| 200.5
|
| 150.0%
| 26sec
| 4.0
| 8.1
| 8500/G3 3:2 Cache
|
| Storm Runner G3 336/168/48
| 750
| 336
| 48.0
| 7.0
| 512k
| 168.0
|
| 162.5%
| 24sec
| 4.0
| 8.1
| 8500/G3 336MHz
|
| Storm Runner G3 335/168/52
| 750
| 335
| 51.6
| 6.5
| 512k
| 167.5
|
| 162.5%
| 24sec
| 4.0
| 8.1
| 8500/G3 335MHz 52 Bus
|
| Crescendo G3/248 NuBus
| 750
| 248
| 33.0
| 7.5
| 1024k
| 123.8
|
| 125.8%
| 31sec
| ?
| 8.1
| G3 in 7100/66
|
